Over 70% of new broadband deployments in metropolitan U.S. projects now specify fiber-to-the-home. This fast transition toward full-fiber networks highlights the growing need for high-performance production equipment.
SZ Stranding Line
Fiber Coloring Machine
Fiber Ribbone Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This modern FTTH cable making machinery delivers measurable business value. The line offers higher throughput together with consistent optical performance with low attenuation. It further complies with IEC 60794 together with ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services include installation and operator training.
The FTTH cable production line package contains fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model provides on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also provides lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
The fiber optic cable production process for FTTH calls for precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.
Here, we summarize the core components together with technologies driving modern manufacturing. Each module must operate using precise timing together with reliable feedback. The choice of equipment influences product consistency, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems produce 600–900 µm jackets for indoor and drop cables.

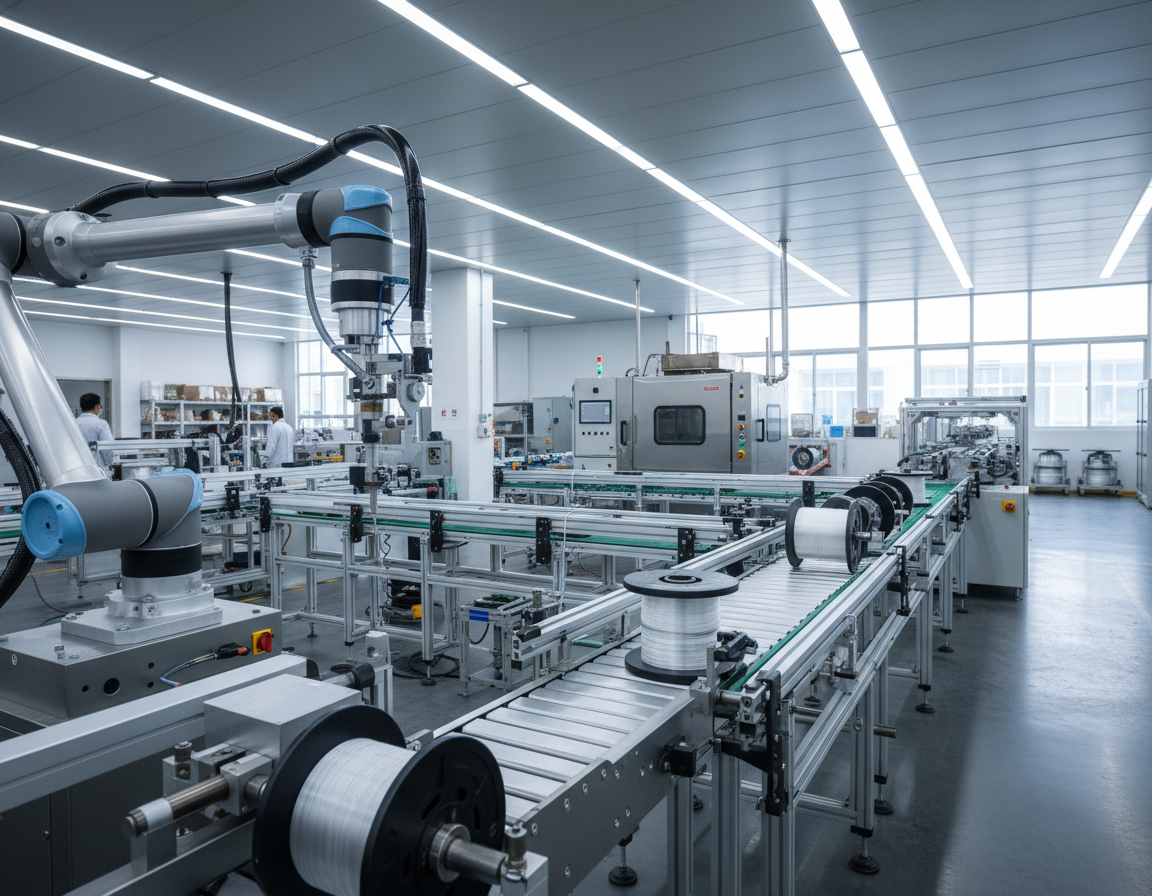

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities shift toward PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable production and reduces labor dependence.
Key Technologies Driving Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Module | Advantage |
|---|---|---|
| Optical fiber drawing | Draw tower with automated tension feedback | Stable core diameter and reduced attenuation |
| Fiber secondary coating | Dual-layer UV coaters | Consistent 250 µm coating for durability |
| Identification coloring | Fiber coloring unit with multiple channels | Accurate identification for splicing and installation |
| Stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Multi-zone heated energy-saving extruders | PE, PVC, or LSZH jackets with tight dimensional control |
| Protection armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Cooling & curing | Cooling troughs plus UV dryers | Rapid stabilization and fewer defects |
| Testing | Inline attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance featuring IEC 60794 as well as ITU-T G.652D/G.657 variants is standard. Cable makers typically certify to ISO 9001, CE, as well as RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment as well as modern manufacturing equipment helps firms meet tight tolerances. That decision enables efficient automated fiber optic cable line output together with positions companies to deliver on scale and consistency.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications meet different market needs. Single-layer setups provide basic mechanical protection as well as a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime together with precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws and barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron provide robust control as well as monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
This fiber draw tower is the core of optical fiber drawing. The line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile as well as attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. It helps prevent microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, as well as geometric tolerances. These services help manufacturers scale toward fast-cycle fiber optic cable production while maintaining ISO-level output quality checks.
| System Feature | Main Purpose | Typical Target |
|---|---|---|
| Furnace with multiple zones | Uniform preform heating for stable glass viscosity | Uniform draw speed with controlled refractive profile |
| Online diameter feedback control | Control core/cladding geometry while reducing attenuation | ±0.5 μm tolerance |
| Tension and cooling management | Protect fiber strength while preventing microbends | Defined tension by fiber type |
| Automated pay-off integration | Smooth transfer to coating and coloring | Matched feed rates to avoid slip |
| Integrated online testing stations | Check attenuation, tensile strength, and geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. This makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed together with target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.
Integration using a downstream fiber cable sheathing line streamlines manufacturing and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs featuring stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality together with reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire featuring adjustable tension to meet specific mechanical ratings.
Built-in consistency control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, together with a synchronized fiber cable sheathing line delivers a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity together with mechanical performance in finished cables.
Fiber Coloring And Identification System Technology
Coloring as well as identification are critical in fiber optic cable line output. Accurate color application minimizes splicing errors together with accelerates field work. Current equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s fast-cycle coloring technology supports multiple channels together with quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning featuring secondary coating lines. UV curing at speeds over 1500 m/min ensures color as well as adhesion stability for both ribbon and counted fibers.
This next sections review standards together with coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles together with ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults as well as accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible featuring common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye together with other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support model cuts ramp-up time together with enhances the reliability of fiber optic cable manufacturing equipment.
Fiber Solutions For Metal Tube Production
Metal tube as well as metal-armored cable assemblies deliver robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling together with centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the employ of steel tape or wire units featuring adjustable tension together with wrapping geometry. That approach benefits armored fiber cable line output by preventing compression of fiber elements. This line also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing as well as extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable line output machine must handle pay-off reels sized for reinforcement as well as align with sheathing tolerances.
Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing supports long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding together with sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Those points reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Advanced data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That manufacturing method employs parallel processes together with precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack as well as tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible featuring MPO trunking as well as high-count backbone systems.
Production controls together with speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, as well as turnkey integration featuring sheathing and testing stations support bespoke high-output fiber cable production line requirements.
| Key Feature | Fiber Ribbon Line | Compact Unit | Benefit for Data Centers |
|---|---|---|---|
| Line speed | Up to 800 m/min | Around 600–800 m/min | More output for large deployment projects |
| Key Processes | Automated alignment, epoxy bonding, curing | Extrusion, buffering, and tight-tolerance winding | Improved geometry consistency with lower insertion loss |
| Primary materials | Specialty tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long service life with compliance benefits |
| Testing | Inline attenuation and geometry checks | Precision dimensional control with tension monitoring | Reduced field failures and faster deployment |
| Line integration | Sheathing and splice-ready stacking | Modular units for high-density cable solutions | More efficient MPO trunk and backbone deployment |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 together with 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D as well as G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It further includes sheathing, armoring, as well as automated testing for consistent fast-cycle fiber manufacturing. A complete fiber optic cable line output line is designed for FTTH together with data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
